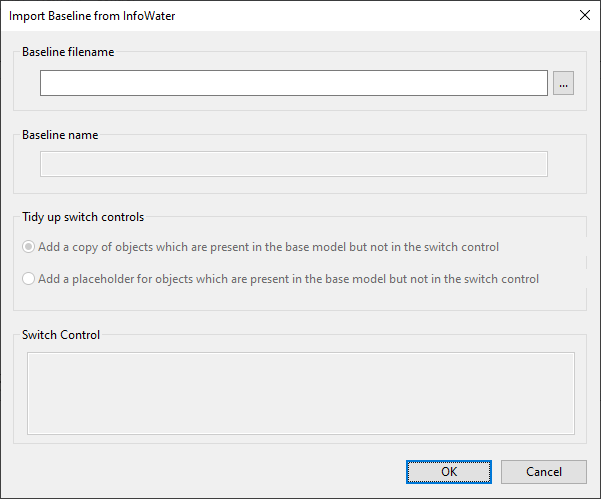

Import Baseline From InfoWater dialog
Use this dialog to browse for an InfoWater xinp file in order to import baseline data into InfoWorks WS Pro.
The dialog is displayed when the Import baseline from InfoWater option is selected from the InfoWater menu.
Show me
|
Option |
Description |
|---|---|
|
Baseline filename |
You can use the |
|
Baseline name |
A default name is suggested for the baseline to be imported and usually corresponds to the name of the source file. You can edit the name if required. |
|
Tidy up switch controls |
If the base control contains objects that are not in a switch control, the software can either copy objects from the base control (Add a copy of objects which are present in the base model but not in the switch control option) or create new blank objects with default values (Add a placeholder for objects which are present in the base model but not in the switch control option). |
|
Switch Control |
This section shows all the switch controls that are associated with the baseline to import. |
(Browse) button to find the required Infowater xinp file through a standard Windows open dialog.
