HydroWorks DSD Import Dialog

The HydroWorks DSD Import Dialog is used when Importing HydroWorks Network Data.

The dialog is displayed when Import | Model | from DSD/SSD file... is selected from the Network menu.

ClosedShow me

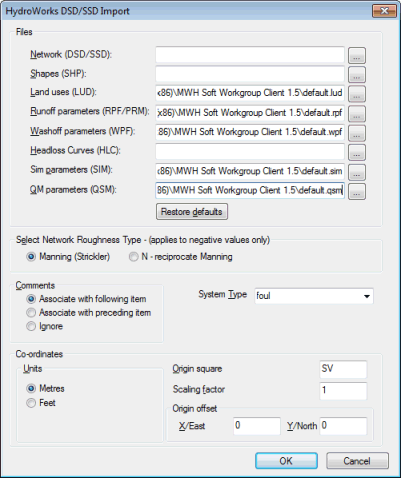

HydroWorks DSD/SSD Import dialog

The Network (DSD/SSD) file is optional. You can import other files and create a blank network with specific imported parameters.

The Shape (SHP) and Headloss Curve (HLC) files are also optional. The Master Database contains built-in conduit shapes and headloss curves.

All the other files are required.

See Importing HydroWorks Network Data for more details on importing HydroWorks networks.
