Using valves to control pressure

The example network will be used to demonstrate the application of controls.

This stage assumes that you have started InfoWorks WS Pro and that the Model Group window is open, showing the Control Examples icon.

The tutorial dataset uses InfoWorks WS Pro native units (metric units). To import the tutorial data correctly, set the user units to metric by selecting Options from the Tools menu and clicking the Metric (Native) button on the Units tab.

Valves can be added to a network for a number of purposes: for example, to control flow or regulate pressure. In this case, valves will be used to close a pipe temporarily and to regulate the pressure in one part of the network. The aim of these valves is to provide a pressure management scheme for a village in the north east of the sample network.

Choose Open model group from the File menu. In the list of objects click to the left of 'Tutorial', click 'Control Examples' and then OK.
Open the provided network:

In the 'Control Examples' model group, right-click the 'Newtown Controls Example' network and select Open.
This could also be branched via the commit history.

Open the control data:

In the 'Control Examples' model group, right-click the Controls Base Control data item and select Open.
Like the network, this could also be branched via the commit history.
The control data is associated with the network and can be edited.
Show image

Currently, the village under consideration is supplied by three pipes. In order to regulate pressure within the village, two of the pipes must be closed off so that the supply is through a single pipe:

Identify link K400342.K400353.1.
Show image
Select the (Properties) tool and click the link.

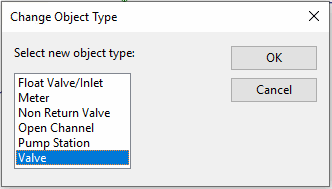

In the Properties dialog, click Change Type, select Valve and click OK.
Show image
In the Valve Parameters section of the properties sheet, set the loss coefficient to 0.1.
Show image

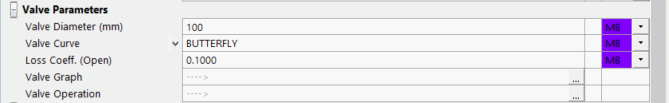

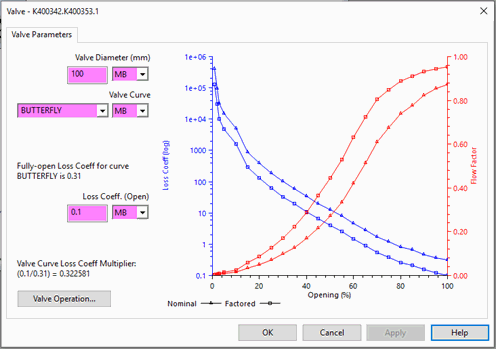

Also in the Valve Parameters section, change the Valve Diameter to 100 mm and the Valve Curve to BUTTERFLY. View the Valve graph to see how it operates.
Show image

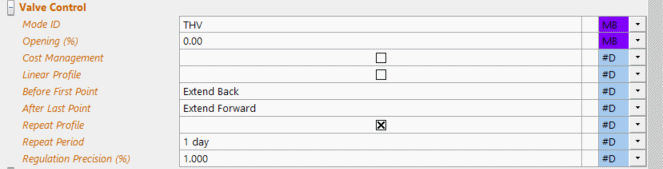

In the Valve Control section, set the Mode ID to THV and the Opening (%) value to 0. This closes the valve and therefore the pipe.
Show image
Change K400205.K400234.1 to a closed valve in the same way.

A valve must be added in link K400276.K400133.1 to regulate flow into the village. First, two nodes must be inserted in the link:

Zoom in on K400276.K400133.1.
Select the (New Node) tool. Click the pipe.
Give the new node an ID of K40PRVUS. Click the Split box and click OK.
Show image
Set the node elevation to 100.5 m in the node property sheet.
Close the Node properties dialog by clicking OK.

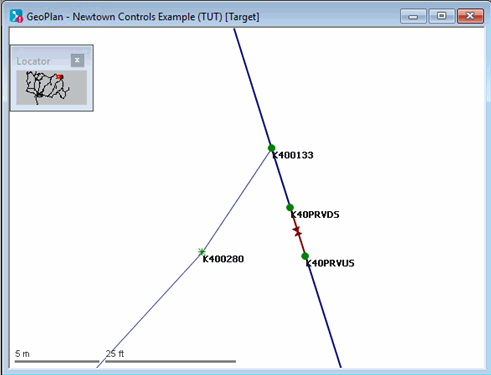

Insert a second node in the link (to the south east of the first node) in the same way, naming it K40PRVDS and setting its elevation to 100.5 m.
Show image

Add the control valve:

Select the (Properties) tool and click the new connecting link (K40PRVDS.K40PRVUS.1).
In the Properties dialog, click Change Type, select Valve and click OK.
On the properties sheet, set the Local Loss Coefficient to 0.1.

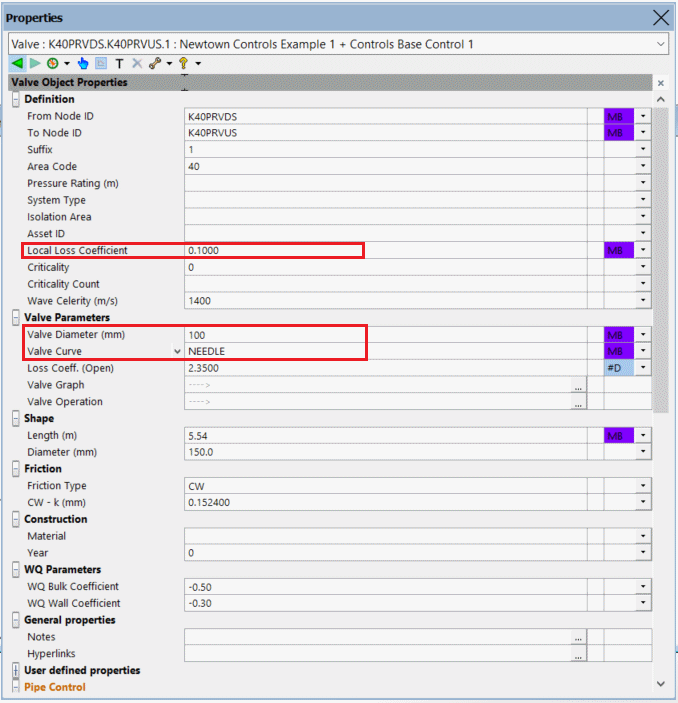

In the Valve Parameters section, change the Valve Diameter to 100 mm and the Valve Curve to NEEDLE.
Show image

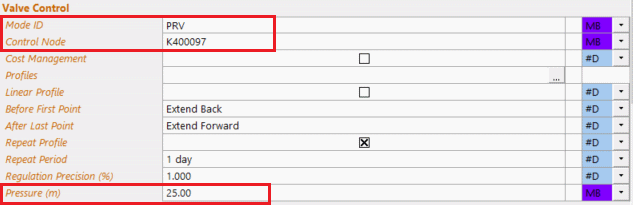

In the Valve Control section, set the Mode ID to PRV and the Pressure to 25 m. Select K400097 as the Control Node.
Show image

The control node is at the far end of the village. The new valve monitors the pressure at the control node and opens or closes in order to keep the pressure at a constant 25 m.

Commit the network and the control data (including validation, which produces some warning messages). Leave a comment 'Pressure Management Example'. Close the GeoPlan view.
Run a simulation:

Right-click the 'Control Examples' model group and select New | Run group. Give the run group a name of 'Newtown Control Simulations'.
Right-click the Newtown Control Simulations group and select New | Run. The Schedule Hydraulic Run dialog is displayed. In the Run Title box, enter the title as 'Pressure Management Scheme'.
Drag Newtown Controlled Network into the Network box.
Drag the Newtown Modified Control Data item into the Control box.
Drag the Profiles demand diagram into the Demand Diagram box.
Change the Start date & time to 1 October 1998 00:00 and the End date & time to 2 October 1998 00:00.
Change the Computational Accuracy to 0.5 l/s.

Click Run Simulations.

View the simulation results:

Open the simulation from the 'Pressure Management Scheme' run.
Use the button to display suitable graphs. For node K400097, select Pressure; for valve K40PRVDS.K40PRVUS.1, select Opening %; for pipe K40PRVUS.K400133.1, select Flow.
Minimise the GeoPlan and tile the views horizontally. The views show that as the pressure changes at the control node, the valve is opened or closed to maintain the control pressure. After a while, the pressure settles into a stable pattern.
Show image

Close all views.

The next stage shows how pump controls can be modified.
